Commercial & Residential Escalators

Commercial & Residential Escalators

Configurations:

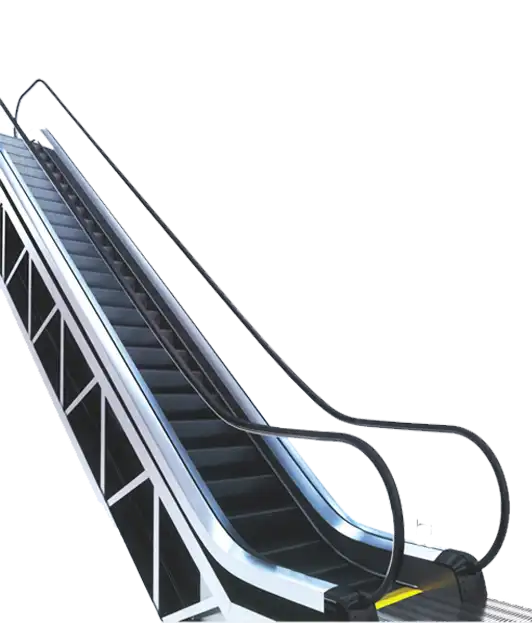

An escalator is a continuous, moving staircase that transports people between floors and mezzanines in commercial buildings, transit hubs, shopping centers, and multi-level residential developments. As a core element of vertical transportation, escalators efficiently move people in high-traffic environments and integrate with elevators, moving walkways, and other elevator components to create a smooth circulation network. Escalators are engineered for continuous duty, predictable throughput, and long life when properly specified and maintained.

Applications and where they’re used:
Escalators are common in airports, train and metro stations, shopping malls, convention centers, stadiums, office towers, and large residential complexes that require fast, continuous people movement. In high rise buildings they are often used for lower-floor circulation and lobbies, working alongside elevators that serve higher floors. They are also used in mixed-use commercial buildings to speed shopper circulation and to move people between retail levels, concourses, and transit platforms.

Key benefits:

• Continuous flow: escalators transport people without the stop-start delay of elevators, reducing congestion in peak periods.

• High throughput: designed to move hundreds or thousands of passengers per hour depending on width and speed.

• Better user experience: simple to use, intuitive, and comfortable for short vertical moves.

• Space-efficient alternatives: can be configured as parallel bank runs, crisscross, or spiral installations to maximize circulation in constrained footprints.

• Integration: works with elevator cars and moving walkways to create a complete people-moving strategy for complex sites.

Typical features and specifications:

• Step widths: common widths include 600 mm, 800 mm, 1000 mm, 1200 mm and larger for heavy footfall locations. Wider steps increase throughput.

• Speed: normal operating speeds are typically 0.5 m/s for shopping malls and 0.65 m/s for transit applications; variable speed options are available.

• Incline angle: most escalators run at 30°; some heavy-duty or specialized designs may use other angles.

• Rise (vertical travel): from a few meters in retail to 10+ meters in interchange stations; multi-tier escalator banks can create longer vertical connections.

• Weight and load: rated for continuous passenger loads; design considers step load, handrail tension, and structure. Specific weight capacity and step load ratings vary by model and must match expected duty cycles.

• Drive system: geared or gearless motors with variable frequency drives (VFD) for smooth starts, energy savings, and soft stops.

• Balustrades and finish: tempered glass balustrades, stainless steel cladding, or powder-coated finishes to match architecture.

• Safety: step-level sensors, comb plate monitoring, skirt brushes, emergency stop switches, step demarcation lighting, and handrail speed sensors.

Escalator components:
Escalators combine mechanical, electrical, and safety subsystems. Key elevator components include the drive unit and gearbox, main shaft, steps and step chains, comb plates, handrail system, balustrades, step rollers, landing plates, safety switches and sensors, and the structural truss. Quality bearings, robust step chains, and precise alignment reduce wear and extend life. Controls integrate with building management and can include occupancy sensing, energy-saving modes, and remote diagnostics.

Design and installation considerations:
When specifying an escalator, evaluate passenger flow studies, peak hour demand, available headroom and pit space, structural load capacities, and fire/egress routing. Escalators require a truss structure and precise coordination with architectural finishes and mechanical systems. In high rise buildings or complex transit nodes, multiple escalator banks and intermediate landings may be used. Accessibility planning is essential: escalators should never replace required elevator access for mobility-impaired users, but they can reduce elevator congestion when sized correctly.

Energy consumption and efficiency:
Energy use depends on speed, length, load, and operating hours. Modern escalators with VFDs and standby modes can reduce consumption substantially by lowering speed or stopping when no passengers are detected. Regenerative technologies and optimized motor selection further improve efficiency. For buildings prioritizing sustainability, choose systems with smart controls, LED lighting, and efficient drives to minimize ongoing energy costs.

Safety and regulatory compliance:
Escalator safety is governed by regional and international standards. Standard safety measures include emergency stop buttons at landings, step-level sensors, handrail speed monitoring, skirt intrusion protection, and audible/visual warnings. Regular safety inspections, adherence to code-required clearances, and proper signage are mandatory. Escalators must be integrated within the building’s emergency egress and fire strategies; power cut behavior and controlled stopping are important design considerations.

Maintenance and lifecycle:
Escalators require scheduled preventive maintenance to remain reliable. Typical maintenance includes step chain tensioning, lubrication, inspection of rollers and bearings, handrail checks, inspection of comb plates and landing areas, electrical diagnostics, and safety device testing. A robust maintenance plan minimizes unplanned downtime and extends asset life. With proper service, escalators can operate safely for decades; periodic modernization of drives, controls, and finishes improves performance and energy efficiency.

Customization and options:
Manufacturers offer customization to fit architectural and operational needs: variable step widths, low-noise drives, glass or stainless balustrades, LED step demarcation, anti-slip step surfaces, emergency lighting, and aesthetic cladding. Controls can include remote monitoring, traffic counting, and energy-saving stand-by programs. For unique installations, custom truss lengths and intermediate platforms are available.

Who should choose escalators:

• Developers and facility managers of malls, transit hubs, airports, and convention centers seeking high throughput circulation.

• Commercial building owners who need efficient lower-floor circulation to reduce elevator demand.

• Transit authorities designing quick transfers between platforms and concourses.

• Property managers of mixed-use developments that require a combination of elevators and escalators for circulation balance.

Short-tail and long-tail keywords used:
escalator, escalators for malls, commercial escalator, residential escalator, inclined escalator, escalator installation, high capacity escalator for transit stations, escalator energy consumption, escalator components, escalator vs elevator car, escalator weight capacity per step, escalator maintenance contract, escalator for high rise buildings, vertical transportation solutions, transport people between floors.

Q / A — common questions about escalators and the elevator industry

Q1 — What’s the difference between an escalator and an elevator?
A: An escalator is a moving staircase that provides continuous movement between floors for people; an elevator (and its elevator car) provides enclosed vertical transport that can move people and heavy goods between multiple floors with stops. Escalators are ideal for continuous, high-throughput short-range moves; elevators are required for accessibility and long vertical travel.

Q2 — How much weight can an escalator carry?
A: Escalators are rated by step load and structural design rather than a single “weight capacity” like an elevator car. Each model has manufacturer-specified step load and passenger throughput. For heavy equipment or pallets, use a freight elevator or dedicated cargo lift.

Q3 — How energy-efficient are modern escalators?
A: Very efficient when specified with VFDs, standby modes, and LED lighting. Systems that slow or stop during low traffic reduce energy use and prolong component life.

Q4 — Are escalators safe for children and elderly users?
A: They are safe when standard safety devices are present and users follow basic precautions. For mobility-impaired users, elevators are the accessible solution; escalators augment circulation for the general public.

Q5 — How often do escalators need maintenance?
A: Regular inspections and preventive maintenance are recommended—typically monthly or quarterly checks plus annual major servicing depending on usage. High-traffic sites may require more frequent servicing.

Q6 — Can escalators be installed in residential buildings?
A: Yes — for large residential complexes or assisted-living facilities, short escalators can help movement between levels. However, elevators remain essential for accessibility and moving heavy items.
