Monarch MRL Elevator Control cabinet

Monarch MRL Control Cabinet: Intelligent Control for Machine-Room-Less Elevators

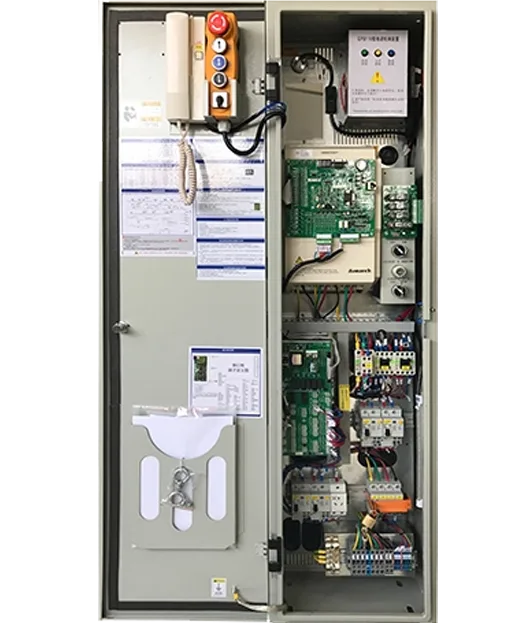

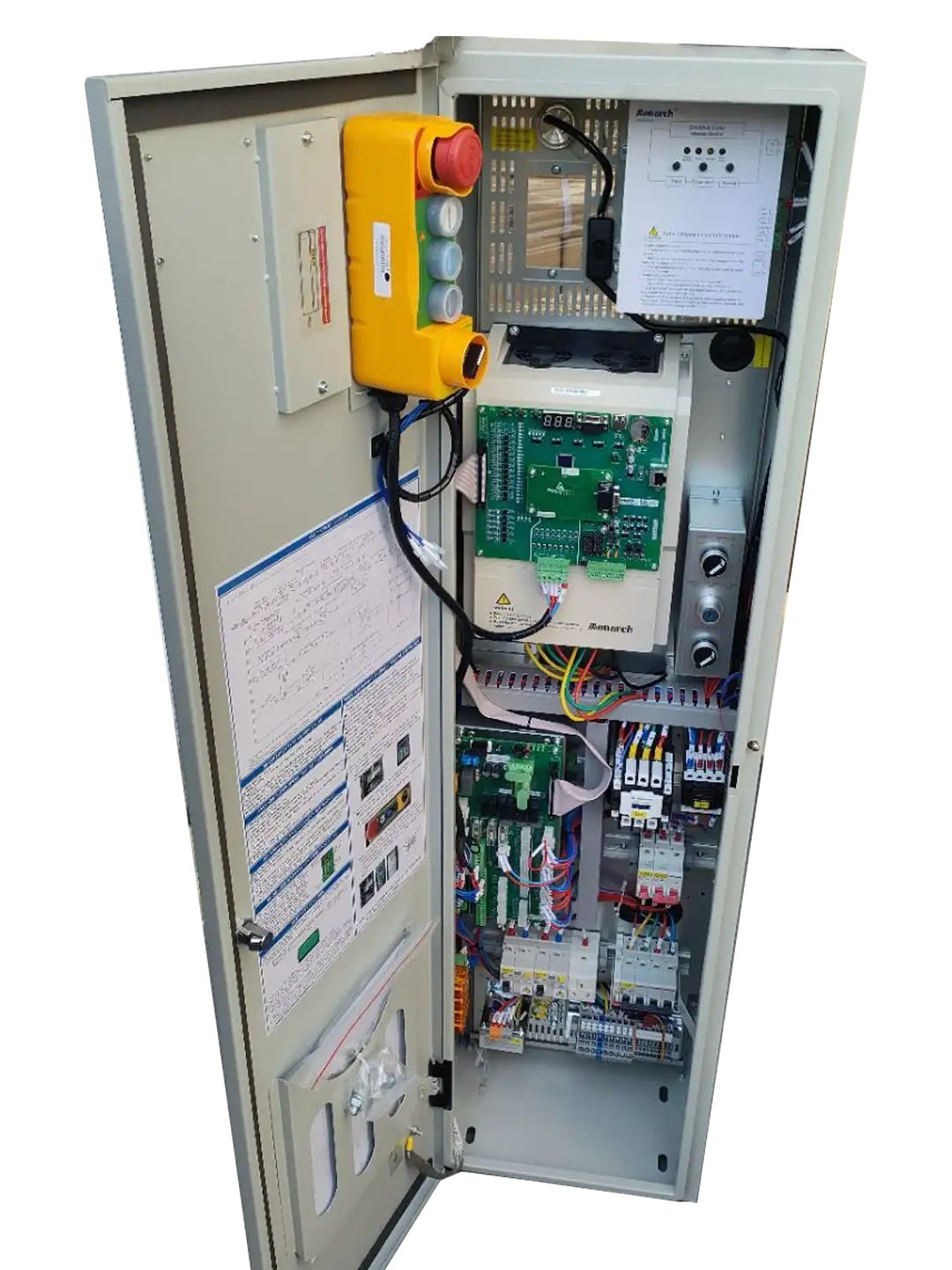

The Monarch MRL Control Cabinet is the advanced command center for machine-room-less (MRL) elevator systems. Designed for reliability and efficiency, this compact cabinet integrates sophisticated drive technology, system logic, and safety features into a single, streamlined unit. By eliminating the need for a separate machine room, it saves valuable building space while delivering smooth, precise, and quiet elevator operation for low to mid-rise buildings.

Key Features & Benefits

• Space-Saving Design: Specifically engineered for the MRL elevator market, this control cabinet is designed to be mounted within the hoistway itself, freeing up valuable architectural space for more profitable uses.

• Advanced Drive & Control: Features a variable voltage, variable frequency (VVVF) AC drive for exceptionally smooth acceleration, deceleration, and floor-leveling. This ensures a premium passenger experience and reduces mechanical stress on the system.

• Integrated Safety System: Built-in compliance with the latest global elevator safety codes (including ASME A17.1/CSA B44 and EN 81-20/50). Includes monitoring for safety circuits, door operation, overspeed, and overload protection.

• Energy Efficient Operation: Regenerative drive technology captures energy normally lost as heat during braking and returns it to the building's power grid, significantly reducing energy consumption and operating costs.

• Modern Connectivity: Equipped with IoT capabilities for remote monitoring, diagnostics, and predictive maintenance. Facility managers can access real-time performance data, error logs, and usage statistics via a web-based interface or building management system (BMS) integration (e.g., BACnet, Modbus).

• Simplified Installation & Service: Pre-wired and pre-programmed modules, clear labeling, and a logical layout reduce installation time and simplify future maintenance and troubleshooting.

Technical Specifications - MRL Focus

• Compliance: Designed to ASME A17.1 / CSA B44 & EN 81-20/50 standards.

• Drive System: Regenerative VVVF AC inverter.

• Power Supply: 208VAC, 240VAC, or 480VAC, 3-Phase, 50/60Hz. Configurable to local grid standards.

• Rated Load: Standard configurations for 2100 lbs (1000 kg) to 5000 lbs (2500 kg) capacities.

• Speed: Designed for speeds up to 200 FPM (1.0 m/s).

• Controller: High-speed, 32-bit microprocessor for precise car positioning and traffic management.

• Enclosure: Heavy-duty, NEMA 1 (IP42) or higher rating, designed for hoistway environment.

• Communication: Standard RS-485 for group control; optional Ethernet, BACnet, Modbus, or LonWorks for BMS integration.
