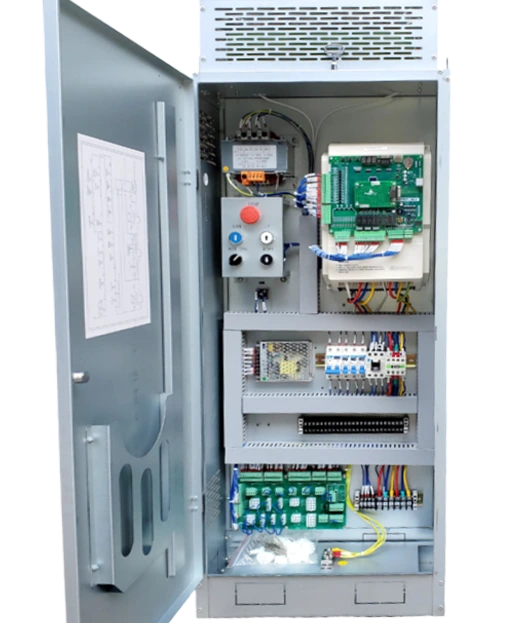

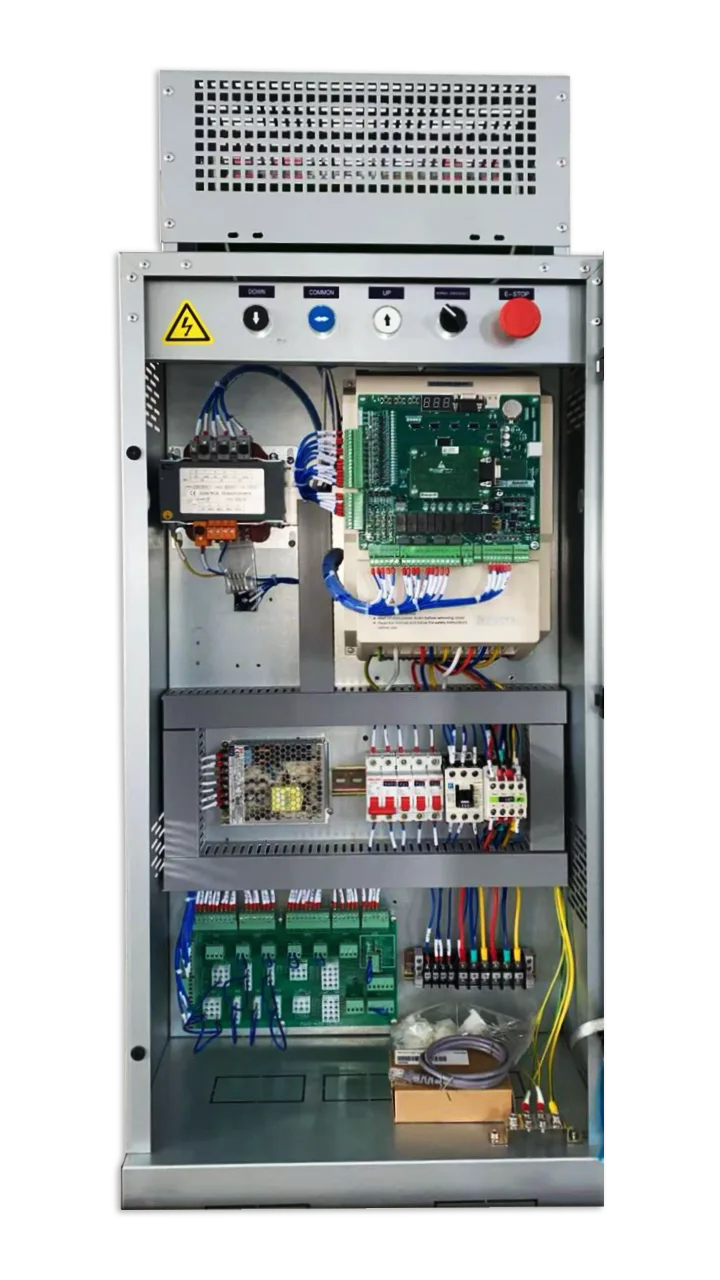

Monarch Nice 3000+ Control Cabinet

Product Details

Monarch Nice 3000+ Control Cabinet

Monarch NICE3000+ is an advanced elevator control system designed for both machine-room (MR) and machine-room-less (MRL) installations. It integrates vector-controlled drive technology with intelligent control capabilities, ensuring efficient and reliable elevator operation.

Key Features & Specifications:

Parameter	Specification
Power Range	2.2 kW to 160 kW
Maximum Landing Floors	Up to 40 floors
Motor Compatibility	Asynchronous (induction) and Synchronous permanent magnet motors
Control Technology	Closed-loop vector control, speed accuracy of ±0.05%
Start Torque	0 Hz/200°/0 start torque
Communication Protocols	CANbus and Modbus
Group Control	Simplex, duplex, up to 8-elevator group control
Safety Standards	UL 508, CE, ISO 14001
Overload Protection	150% rated current for 60 seconds, 200% for 1 second
Re-levelling Function	Automatic adjustment to floor level
Direct-to-Floor	Precise stopping at desired floor level
Forced Deceleration	Applies deceleration at terminal points
Shaft Parameter Self-Learning	Records elevator shaft parameters for optimal performance
Modularity	Hot-swappable modules for easy upgrades and repairs
Processor	2 GHz processor for real-time control
Mounting Type	Floor-mounted, for MRL and MR installations
Dimensions (Example 15kW)	347.5 mm (H) × 322.0 mm (W) × 223.0 mm (D)
Emergency Operation	1-phase 230V AC UPS readiness
Door Operation Modes	Manual, semi-auto, and auto modes
Energy Efficiency	Designed for low energy consumption

Intelligent Control Features:

Redundant CPU Architecture: Ensures system reliability through multi-CPU redundancy.
Time-Sharing Control: Facilitates efficient elevator management with built-in real-time clock.
Short-Floor Detection: Automatically identifies and adjusts operation for short floors.
Flexible Emergency Backup: Supports 220V AC power input for emergency evacuation.
Handheld Operation Tools: Includes mini keypad, PDA, and PC interfaces for easy commissioning.
Fault Diagnostics: Provides 60 fault codes for efficient troubleshooting.

Applications:

The Monarch NICE3000+ is suitable for a wide range of elevator applications, including:

Residential Buildings: Home lifts and low-rise apartments.
Commercial Establishments: Office buildings and shopping malls.
Industrial Facilities: Warehouses and manufacturing plants.
High-Rise Structures: Skyscrapers requiring efficient vertical transportation
