FUJI Elevator Landing Door Design

FUJI Elevator Landing Door Designs

FUJI's premium elevator landing doors combine engineered safety with architectural elegance, designed for seamless integration in commercial, residential, and high-traffic buildings. Compliant with EN 81-20/50, ASME A17.1, and global safety standards.

Key Features

1. Material Options:

   • Stainless Steel: 304/316 grade (1.2–2mm thickness), brushed/mirror finish, vandal-resistant.

   • Frameless Glass: 10–12mm tempered glass with UV-resistant interlayer.

   • Hybrid Designs: Steel frames with glass inserts (customizable RAL colors).

2. Safety & Compliance:

   • Fire-rated (up to 90 minutes, EN 13501-1 certified).

   • Infrared safety sensors & mechanical safety edges.

   • ADA-compliant thresholds (≤5mm height difference).

3. Performance:

   • Silent operation (<45 dB) with precision-guided rollers.

   • 200,000+ cycle durability (tested to EN 81-58).

   • Operating range: -30°C to +50°C.

4. Smart Integration:

   • RFID/face recognition access control compatibility.

   • IoT-enabled for predictive maintenance monitoring.

5. Customization:

   • Widths: 800–1400mm (standard), up to 2000mm (custom).

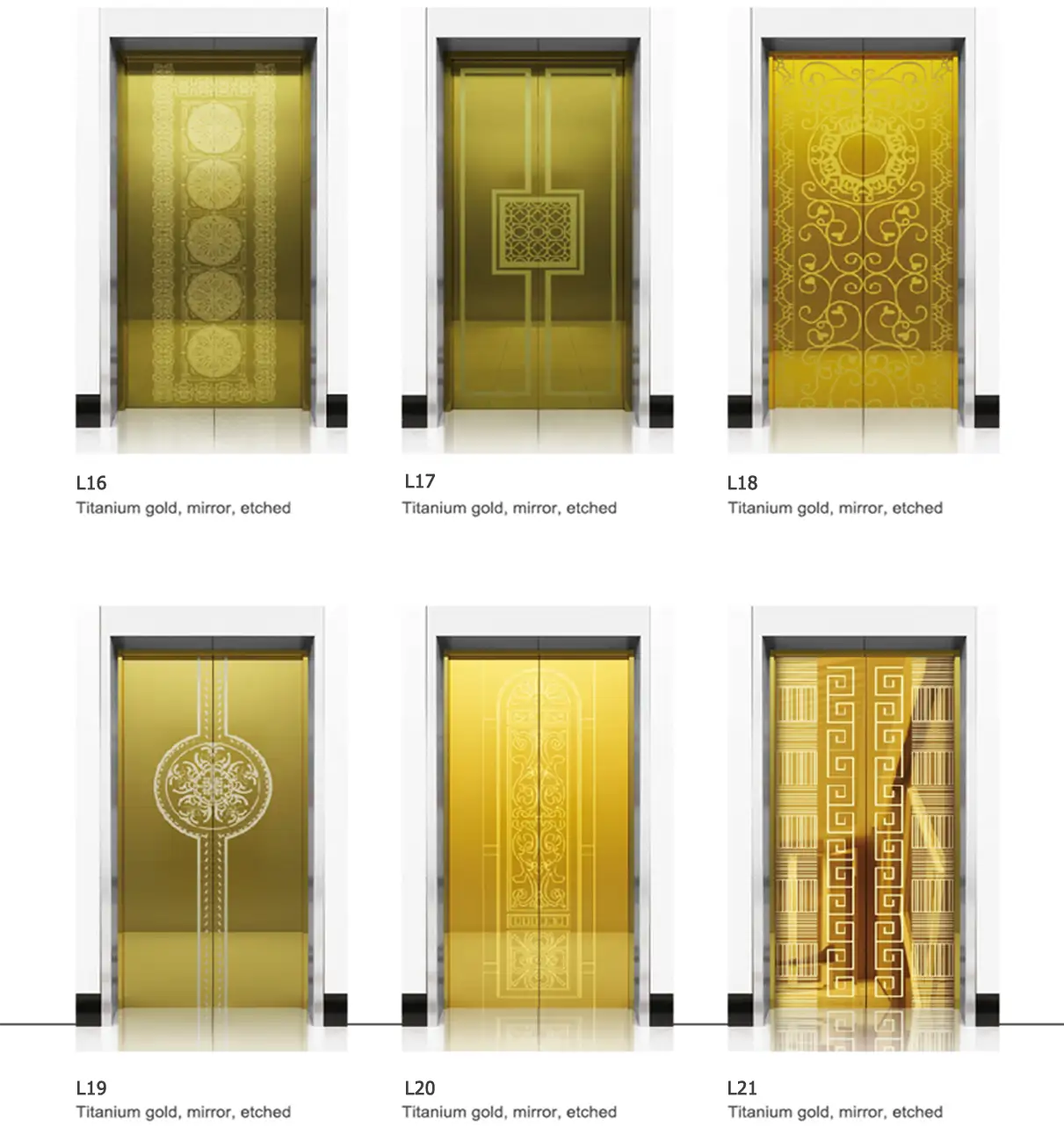

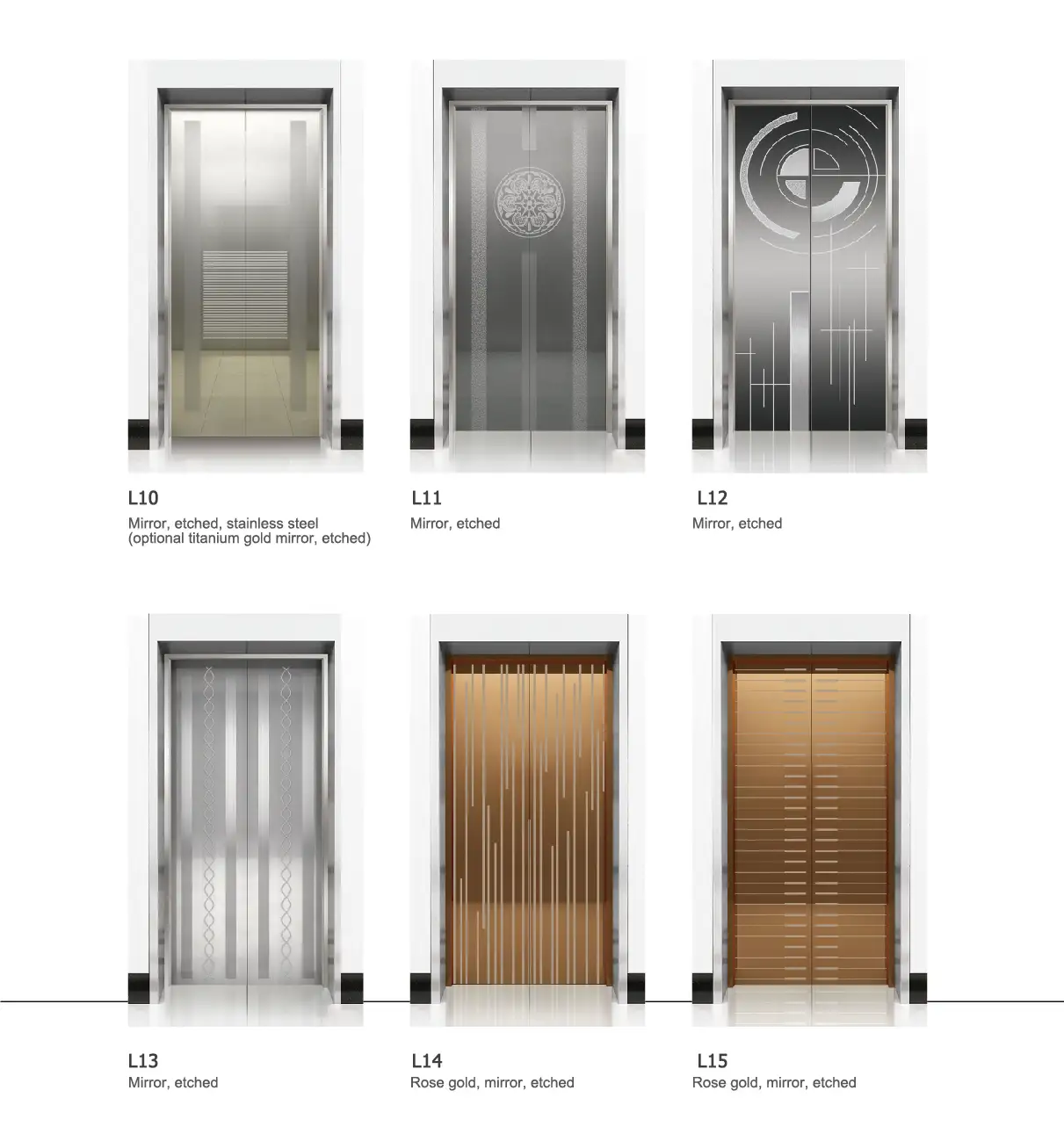

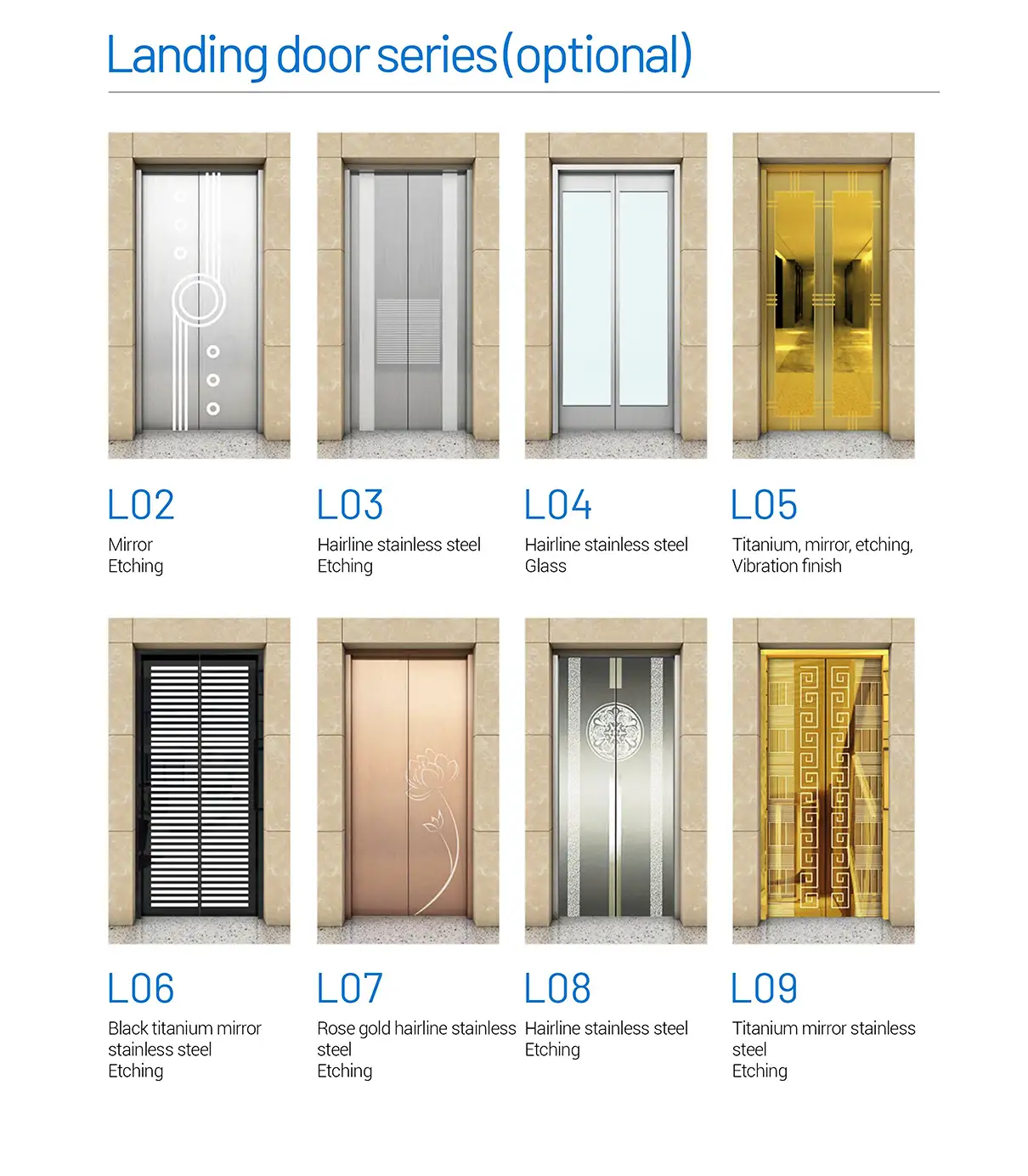

   • Finishes: Wood veneer, bronze PVD coating, or branded etching.

   • Vision panels: Circular, horizontal, or full-height glass.
