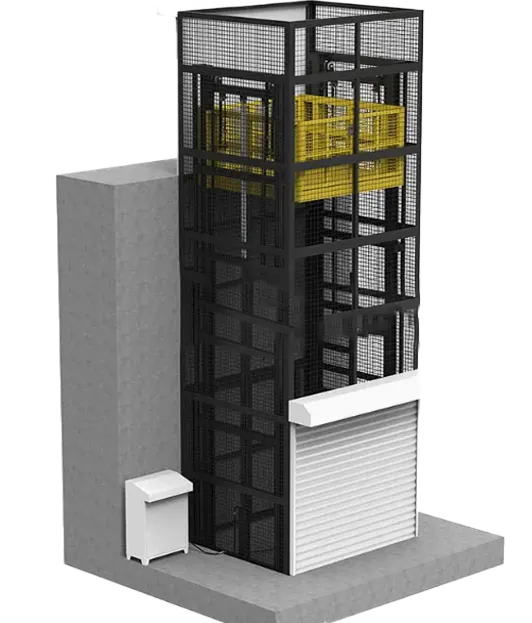

Heavy-Duty Hydraulic Freight Lifts with High Weight Capacity

Heavy-Duty Hydraulic Freight Lifts with High Weight Capacity

Configurations:

Hydraulic cargo elevators  also called hydraulic freight elevators or goods lifts, provide reliable, cost-effective vertical transportation for heavy loads in warehouses, commercial buildings, and mixed-use developments. Designed for durability and serviceability, hydraulic cargo elevators are widely used where high weight capacity and smooth, stable operation matter most. Typical applications include warehouses, manufacturing plants, loading docks, retail distribution centers, commercial buildings, and residential complexes with goods-handling needs.

Key benefits

• High weight capacity options (from small goods lifts to heavy-duty 5,000–20,000+ kg systems).

• Stable, shock-free movement — ideal for delicate machinery and palletized loads.

• Compact machine room or machine-room-less (MRL) configurations reduce building footprint.

• Lower initial cost compared with some traction freight systems for comparable capacities.

• Easy to service: accessible elevator components and simple hydraulic maintenance.

• Customizable elevator car sizes, door types, and platform configurations to match operational workflows.

Features & Specifications (typical / customizable)

• Load capacity: 500 kg — 20,000+ kg (custom ranges available).

• Travel height: up to building requirement; suitable for low-rise goods lifts and high rise buildings when designed with appropriate staging and controls.

• Drive type: single-stage, two-stage, or multi-stage hydraulic cylinders; submersed or external power units.

• Speed: 0.15 — 1.0 m/s (adjustable for safety and load profile).

• Car types: open platform, enclosed elevator car, palletized car, or roll-on deck.

• Doors: single slide, two-speed, or bi-parting; automatic or manual options.

• Controls: PLC logic, push-button, keyed access, destination control for multi-stop freight logistics.

• Safety: overload protection, emergency lowering, mechanical locks, buffer systems, pit and top-of-car protection.

• Energy consumption: efficient pump motors and variable frequency drives (VFD) available to reduce consumption during frequent cycles.

• Finish: galvanized or painted steel platforms; anti-slip decking; optional stainless steel for hygienic applications.

Elevator components

Hydraulic cargo elevators rely on robust elevator components engineered for heavy duty use: hydraulic cylinders, power units (pump, motor, reservoir, valves), control panels, elevator car frame and platform, doors and guides, buffers, safety gear, pit and headroom structures, and optional accessories such as ramps, dock levelers, and overload indicators. Each component is selected to match the elevator car size, weight capacity, and duty cycle of the installation.

Design & installation considerations

When specifying a hydraulic freight elevator, evaluate the following: required weight capacity, platform size, travel distance, duty cycle (frequency of use), building constraints (pit depth, headroom, machine room space), and local code/regulatory requirements. Hydraulic systems are especially suited to low-to-mid rise applications and installations where headroom is limited. For high rise buildings, design must address oil column length, cylinder staging, and potential need for intermediate landings or alternative drive systems.

Energy consumption & efficiency

Hydraulic cargo elevators consume energy mainly when lowering large loads (hydraulic systems can be designed to recover energy or use VFDs to modulate pump operation). Selecting efficient pump motors, implementing variable speed drives, and sizing the system to the actual duty profile reduces operating costs. For heavy, frequent cycles, discuss energy-recovery or hybrid options with your supplier.

Safety & compliance

Safety features include overload sensors, pressure relief valves, emergency lowering, interlocks on doors, pit and top-of-car protection, and compliant braking/locking devices. Ensure the hydraulic cargo elevator design meets local codes and international standards for freight elevators, and confirm certificates for structural calculations, materials, and factory testing.

Maintenance & lifecycle

Regular preventive maintenance keeps hydraulic cargo elevators reliable: scheduled checks of hydraulic fluid, seals, hoses, filters, control logic, door operation, and safety devices. Component accessibility and modular design reduce downtime. Typical life expectancy is long when maintained — many installations remain serviceable for decades, though modernization (controls, drives, and car finishes) increases longevity and efficiency.

Who should choose a hydraulic cargo elevator?

• Warehouse managers needing robust pallet and racked goods movement.

• Facility engineers in commercial buildings wanting low-maintenance freight lifts.

• Owners of residential buildings that require goods lifts for move-ins and deliveries.

• Industrial sites transporting heavy machinery between floors.
