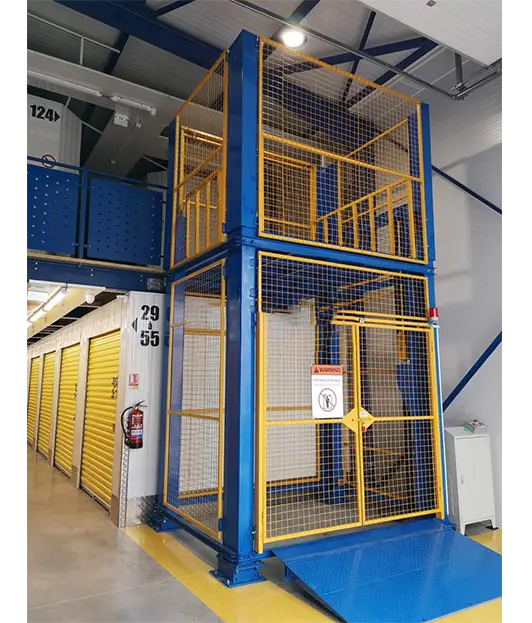

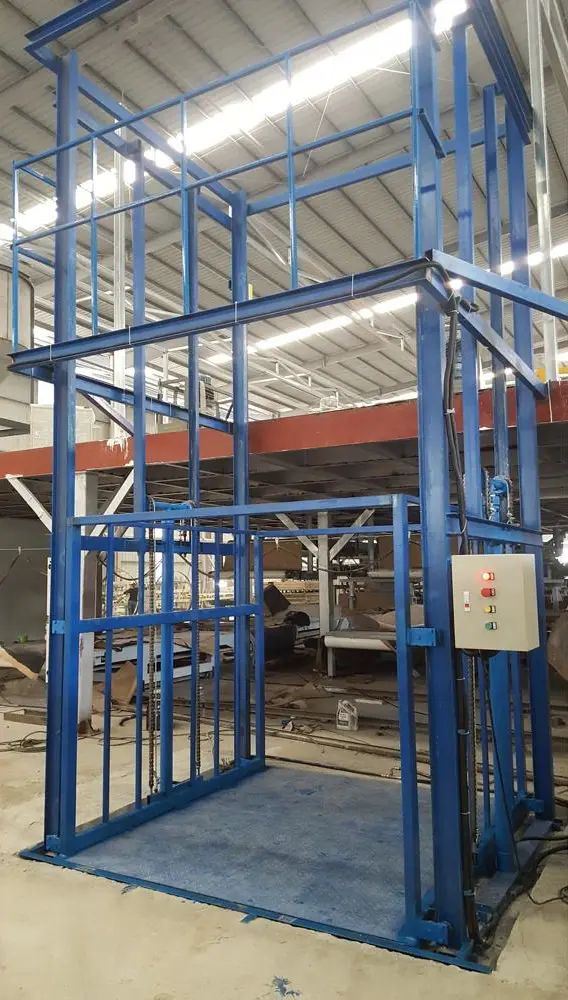

Hydraulic Cargo Elevators

A hydraulic cargo lift is an industrial-grade vertical lifting platform designed to safely and efficiently transport heavy loads between different levels in warehouses, factories, loading docks, workshops, and storage facilities. Powered by a hydraulic system, it delivers unmatched strength, stability, and reliability for moving pallets, machinery, raw materials, and oversized cargo where traditional elevators or conveyors are impractical.

Core Components & Working Principle

1. Hydraulic Power Unit (HPU):

   • Drives the lift via an electric motor, pump, and hydraulic fluid reservoir.

   • Generates high pressure to extend hydraulic cylinders smoothly.

2. Scissor Mechanism:

   • Steel scissor arms expand/contract vertically when hydraulic pressure is applied.

   • Ensures even weight distribution and platform stability.

3. Platform Deck:

   • Heavy-duty steel construction with anti-slip surfacing.

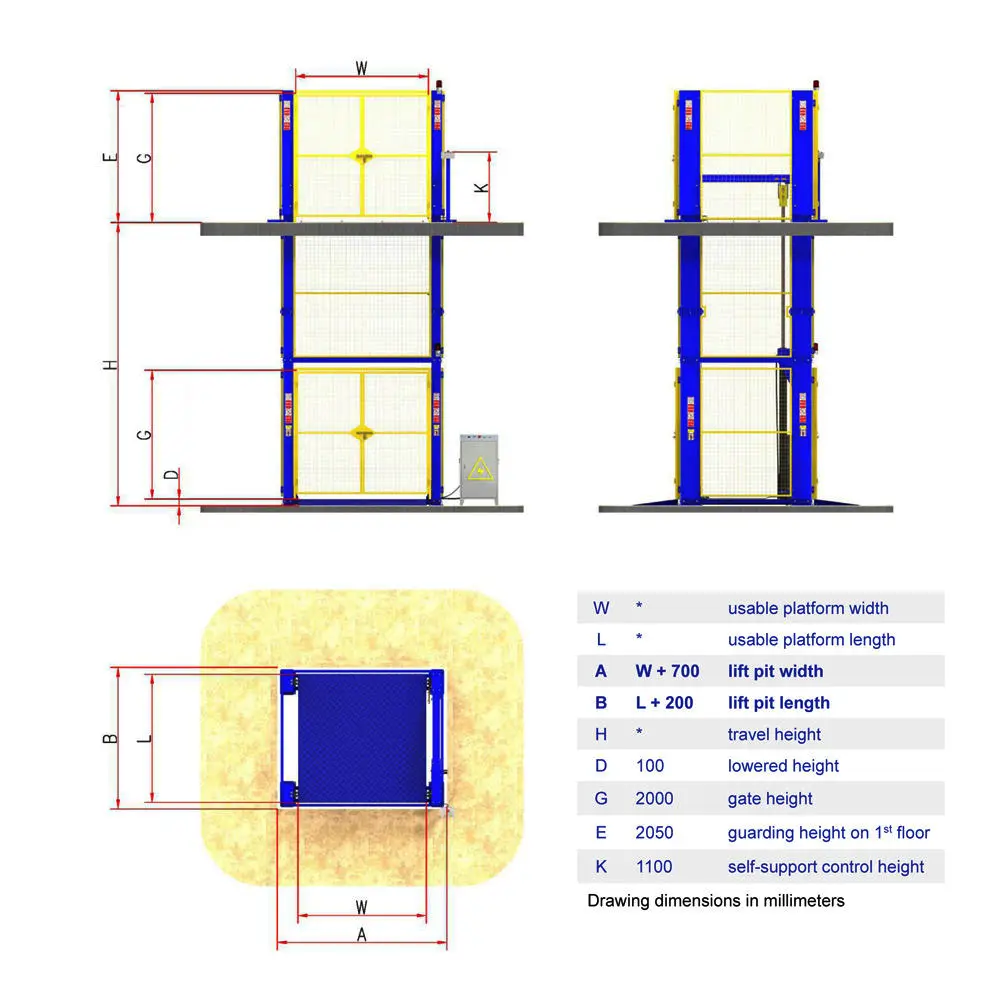

   • Customizable sizes (e.g., 4'x8', 6'x10') to accommodate pallets, equipment, or bulk goods.

4. Safety Features:

   • Emergency stop buttons, safety gates/guardrails, and overload sensors.

   • Mechanical locks to secure the platform at rest.

Key Technical Specifications

• Load Capacity: 1,000–50,000+ lbs (450–22,600+ kg).

• Lift Height: Up to 30 feet (9+ meters), with pit-mounted or surface-level installations.

• Drive Options: Electric/hydraulic or power-off gravity descent.

• Speed: 0.1–0.3 m/s for controlled, vibration-free operation.

Advantages Over Electric Lifts

✓ Heavy Load Handling: Superior power density for extreme weights.
✓ Smooth Acceleration/Deceleration: Minimizes load shifting or damage.
✓ Low Maintenance: Fewer moving parts than traction systems.
✓ Space-Efficient: Minimal overhead clearance required (ideal for low-headroom spaces).
✓ Fail-Safe Operation: Gradual descent during power outages.

Typical Applications

• Warehousing: Moving pallets to mezzanines or multi-level storage.

• Manufacturing: Transporting assembly lines, presses, or raw materials.

• Loading Docks: Bridging gaps between trucks and elevated platforms.

• Automotive/Workshops: Lifting vehicles, machinery, or tooling.

• Retail/Storage: Accessing basement stockrooms or vertical shelving.

Customization & Compliance

• Modular Design: Adjustable platform dimensions, lift heights, and enclosure options.

• Compliance: Meets ANSI/ASME, OSHA, and EU Machinery Directive safety standards.

Why Choose Hydraulic?

Hydraulic cargo lifts excel in demanding environments where durability, safety, and high load capacity are non-negotiable. Their robust construction, low operational costs, and adaptability make them indispensable for streamlining vertical logistics in industrial and commercial settings.
